For developers and system integrators using IAMMETER meters without IAMMETER-Cloud.

IAMMETER Wi-Fi energy meters are designed for both cloud-based and local integrations, providing open APIs (HTTP, MQTT, Modbus/TCP) that enable developers to build their own Energy Management Systems (EMS), Building Management Systems (BMS), or smart home automation platforms.

IAMMETER firmware is continuously upgraded. This document lists all local and open integration features supported by the latest firmware. (Continuously updated)

1) Firmware Update

Get the latest firmware releases here:

• Firmware Release Page (imeter.club): https://imeter.club/topic/11

2) Run Modes (Non-Cloud)

Choose a mode based on how you integrate or use the device.

Legacy Firmware UI

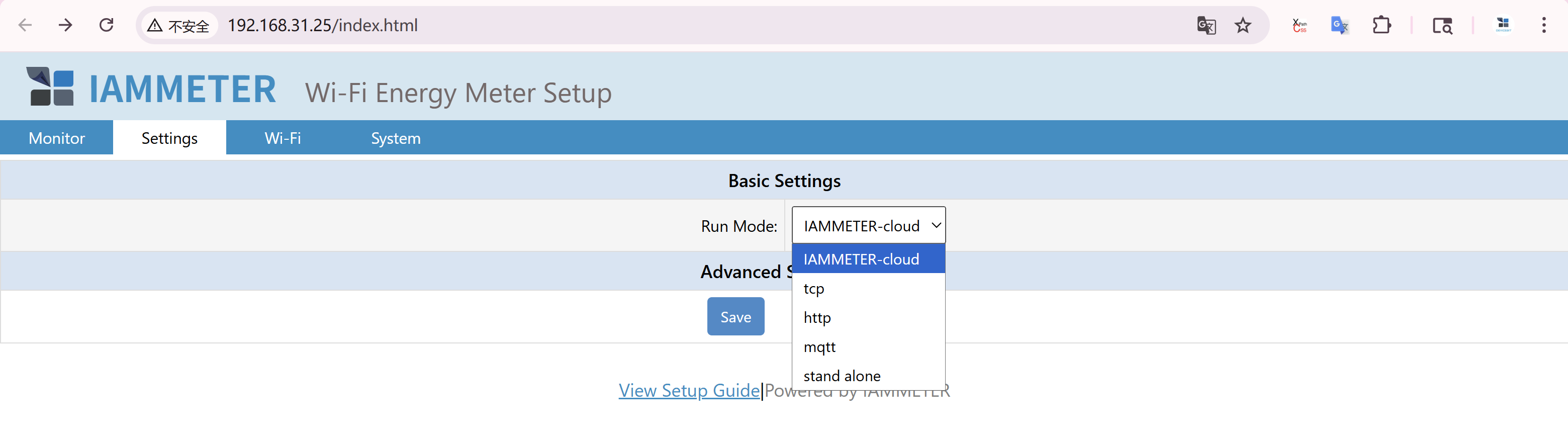

Latest Firmware WebUI

(The rest of your document continues unchanged from your latest version.)

3) TCP / TLS / MQTT Integration

3.1 TCP & TLS

Meters can push data directly to your TCP/TLS endpoint.

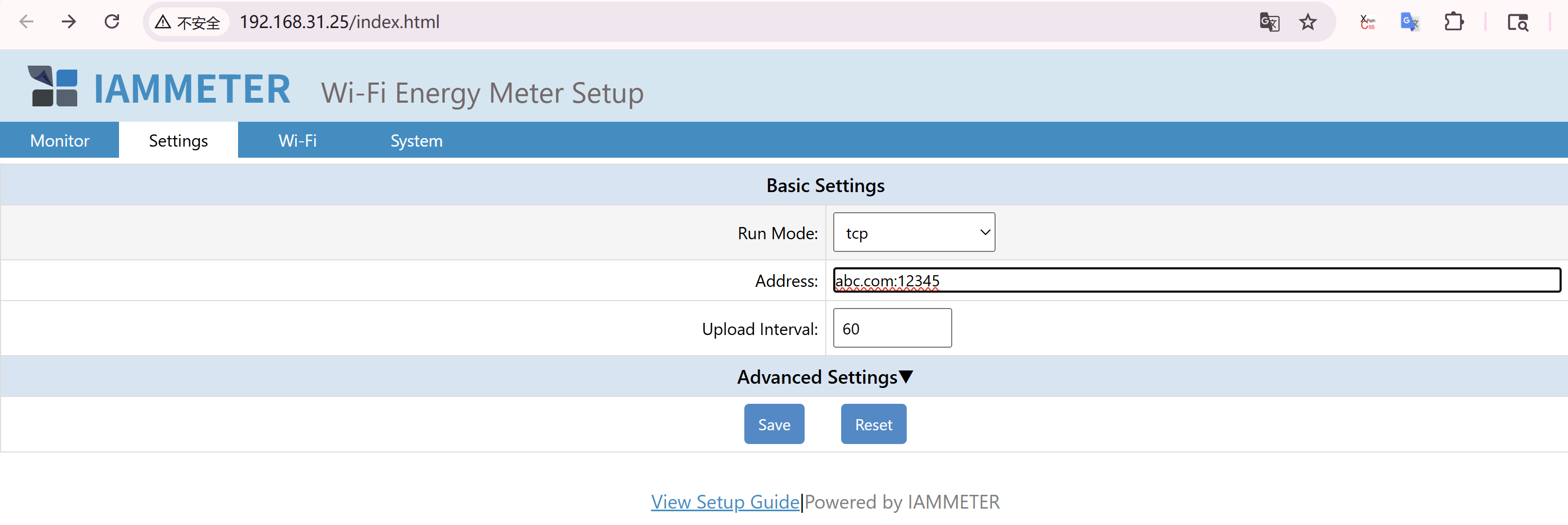

🔹 New Firmware Configuration

The configuration process in the latest firmware is similar to the previous versions.

Run Mode: tcp

Address:

• For a TCP server — enter {domain}:{port} (e.g., abc.com:12345).
• For a TLS server — use tls://{domain}:{port} (e.g., tls://abc.com:12345).

Upload Interval: The minimum upload interval is 2 seconds.

🔹 Legacy Firmware Configuration

• Guide: Third-Party Server Integration (TCP/TLS)
• Video: Upload Energy Data to Third-Party Server

3.2 MQTT

🔹 New Firmware Configuration

Run Mode: mqtt Address: Enter IP or domain with port, e.g., 192.168.11.163:1883 Username / Password: MQTT broker credentials (optional if not required by the broker)

Upload Interval: Minimum interval is 2 seconds. HA MQTT Discovery: Enable MQTT Discovery in Home Assistant

🔹 Legacy Firmware Configuration

Publish telemetry to a local or public MQTT broker.

• Guide: MQTT Integration Guide

4) HTTP / HTTPS Integration

🔹 Legacy Firmware Configuration

Meters can post data directly to your custom server.

• Data payload format is identical to TCP/MQTT modes.
• Any port can be used.
• Port 443 enables HTTPS automatically.
• Details: Upload via HTTP/HTTPS

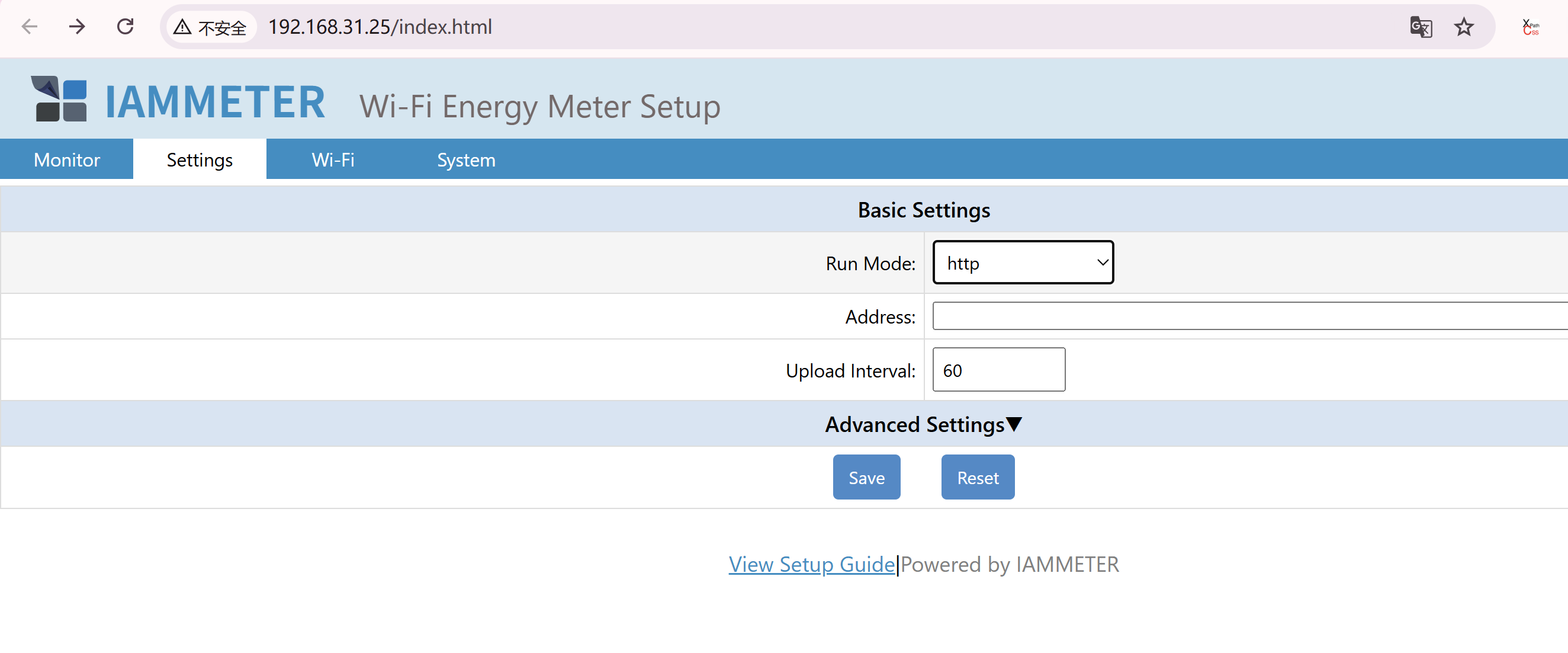

🔹 New Firmware Configuration

Address: The input format is the same as the legacy firmware.

• If no port is specified, the default port is 80.
• Only port 443 uses HTTPS post; all other ports use HTTP post.

5) Local API (HTTP over LAN)

Access the meter locally via its LAN IP — no cloud connection required.

5.1 GET /api/monitorjson

Returns real-time measurement data. Fields: Voltage, Current, Active Power, Forward/Reverse kWh, Frequency, Power Factor.

Example:

{
  "method": "uploadsn",
  "mac": "B0F8933C4F94",
  "version": "i.75.97.9",
  "server": "em",
  "SN": "3E0BAF87",
  "Datas": [
    [220.0, 9.99, 2198, 11.337, 11.201, 49.99, 1.00],
    [222.5, 9.99, 1100, 11.039, 10.908, 49.99, 0.50],
    [263.5, 9.99, 1213, 10.975, 10.846, 49.99, 0.55]
  ]
}

📘 Reactive Power Measurement Extension

5.2 GET /api/monitor

Advanced version of monitorjson, includes Wi-Fi signal info:

• ssid (connected AP name)
• sig (signal strength)

5.3 GET /api/wifidata

Returns Wi-Fi and network configuration.

{
  "version":"i.75.97.9","SN":"3E0BAF87","mac":"B0F8933C4F94",
  "type":"PM","ssid":"CMCC-laohe","ip":"192.168.11.62",
  "netmask":"255.255.255.0","gw":"192.168.11.253",
  "dns":"114.114.114.114","dhcp":1,"runMode":"tcp","uploadinterval":60
}

5.4 GET /api/uploadinterval?x=<seconds>

Sets upload interval (in seconds).

Works in non-Cloud modes (TCP/HTTP/MQTT).

In the latest firmware, this parameter can now be configured directly from the WebUI interface, without calling the API manually.

5.5 GET /api/mqtt

Configures MQTT credentials. 📘 MQTT Config API Docs

In the latest firmware, this parameter can now be configured directly from the WebUI interface, without calling the API manually.

5.6 GET /api/netmetring

Toggles Net Energy Metering (NEM) mode. 📘 Enable NEM Mode

In the latest firmware, this parameter can now be configured directly from the WebUI interface, without calling the API manually.

5.7 GET /api/ctcratio

Adjusts Phase C multiplier for split-phase/balanced scenarios.

• x=2 doubles Phase C readings (current, power, kWh). 📘 CTC Ratio Explanation

In the latest firmware, this parameter can now be configured directly from the WebUI interface, without calling the API manually.

5.8 GET /api/reactive

Enables or disables Reactive Power (Q) and Reactive Energy (KVARh) measurement. 📘 Reactive Power Documentation

In the latest firmware, this parameter can now be configured directly from the WebUI interface, without calling the API manually.

5.9 GET /api/ratio (only available for WEM3046T)

Since the WEM3046T uses external CTs with 5A secondary outputs (e.g., 1000:5, 1500:5, 2000:5, etc.), the measured values (current, power, energy) must be multiplied by the CT ratio.

Example:

/api/ratio?x=400

• Set ratio: /api/ratio?x={ct_ratio}
• Query ratio: /api/ratio

Only WEM3046T supports external 5A CTs — this API is invalid for other models.

6) JSON Format Consistency

All communication modes — HTTP, TCP, MQTT, Local API — use the same JSON structure. 📘 JSON Data Definition

7) Modbus/TCP Support

IAMMETER meters natively support Modbus/TCP, allowing direct integration with Home Assistant, PLCs, or SCADA systems.

• Modbus/TCP Overview
• Home Assistant Modbus Example

8) Supported Integration Scenarios

9) Resources

• Firmware Releases
• Video Tutorials
• JSON Definition
• Modbus/TCP Overview
• Develop Your Own System

10) Developer Summary
